UCPA 207/H SKF
6866014245-YatakliPillow block ball bearing units
Quote and order options

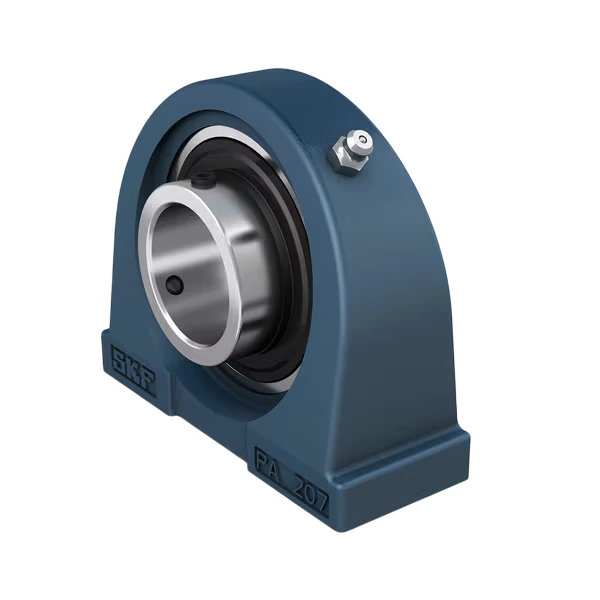

SKF UCPA 207/H pillow block ball bearing unit: bore diameter (d) 35 mm, shaft center height 47.6 mm, bolt hole spacing 80 mm, and basic dynamic load rating C 25.5 kN.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
UCPA 207/H SKF technical data
- Brand
- SKF
- Category
- Bearing housings and units / Plummer block housings and units / Pillow block ball bearing units
- Part number
- UCPA 207/H
- Overall length
- 110.5 mm
- Overall height
- 93 mm
- Set screw hole distance
- 6 mm
- Base width
- 42 mm
- Base height
- 12.5 mm
- Center height
- 47.6 mm
- Mounting hole spacing
- 80 mm
- Housing top width
- 22 mm
- Inner ring face to raceway centre
- 25.4 mm
- Bore diameter (d)
- 35 mm
- Width (B)
- 42.9 mm
- Basic dynamic load rating C
- 25.5 kN
- Basic static load rating C0
- 15.3 kN
- Fatigue load limit Pu
- 0.655 kN
- SKU
- 6866014245-Yatakli
- HS code (6-digit)
- 848320
- CN code (8-digit)
- 84832000
- GTİP (Turkish customs tariff number, 12-digit)
- 848320000000
- Country of origin
- Sweden
- Net weight
- 1.41 kg
- Volumetric weight (desi)
- 1.41
