UCPX12 SKF
6866014255-YatakliPillow block ball bearing units
Quote and order options

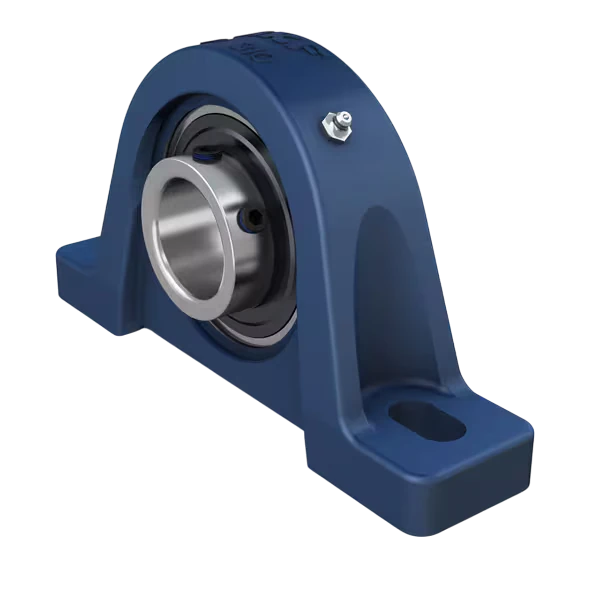

SKF UCPX12 pillow block ball bearing unit: bore diameter (d) 60 mm, shaft center height 76.2 mm, bolt hole spacing 203 mm, and basic dynamic load rating C 57.2 kN.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
UCPX12 SKF technical data
- Brand
- SKF
- Category
- Bearing housings and units / Plummer block housings and units / Pillow block ball bearing units
- Part number
- UCPX12
- Overall length
- 265 mm
- Overall height
- 153.5 mm
- Set screw hole distance
- 12 mm
- Base width
- 72 mm
- Base height
- 25.5 mm
- Center height
- 76.2 mm
- Mounting hole spacing
- 203 mm
- Mounting hole length
- 30 mm
- Housing top width
- 35 mm
- Inner ring face to raceway centre
- 39.7 mm
- Bore diameter (d)
- 60 mm
- Width (B)
- 65.1 mm
- Basic dynamic load rating C
- 57.2 kN
- Basic static load rating C0
- 40 kN
- Mounting hole diameter
- 25 mm
- Fatigue load limit Pu
- 1.7 kN
- SKU
- 6866014255-Yatakli
- HS code (6-digit)
- 848320
- CN code (8-digit)
- 84832000
- GTİP (Turkish customs tariff number, 12-digit)
- 848320000000
- Country of origin
- Sweden
- Net weight
- 6.5 kg
- Volumetric weight (desi)
- 65
