UCPX16 SKF
6866014259-YatakliPillow block ball bearing units
Quote and order options

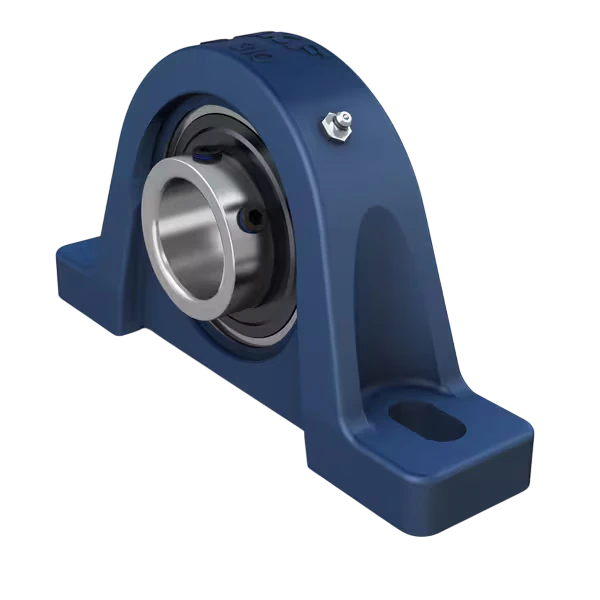

SKF UCPX16 pillow block ball bearing unit: bore diameter (d) 80 mm, shaft center height 95.2 mm, bolt hole spacing 247 mm, and basic dynamic load rating C 83.2 kN.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
UCPX16 SKF technical data
- Brand
- SKF
- Category
- Bearing housings and units / Plummer block housings and units / Pillow block ball bearing units
- Part number
- UCPX16
- Overall length
- 310.5 mm
- Overall height
- 189 mm
- Set screw hole distance
- 12 mm
- Base width
- 83 mm
- Base height
- 34.5 mm
- Center height
- 95.2 mm
- Mounting hole spacing
- 247 mm
- Mounting hole length
- 35 mm
- Housing top width
- 48 mm
- Inner ring face to raceway centre
- 51.6 mm
- Bore diameter (d)
- 80 mm
- Width (B)
- 85.7 mm
- Basic dynamic load rating C
- 83.2 kN
- Basic static load rating C0
- 64 kN
- Mounting hole diameter
- 25 mm
- Fatigue load limit Pu
- 2.5 kN
- SKU
- 6866014259-Yatakli
- HS code (6-digit)
- 848320
- CN code (8-digit)
- 84832000
- GTİP (Turkish customs tariff number, 12-digit)
- 848320000000
- Country of origin
- Sweden
- Net weight
- 12 kg
- Volumetric weight (desi)
- 120
