UCT 204/H SKF
6866014261-YatakliTake-up units
Quote and order options

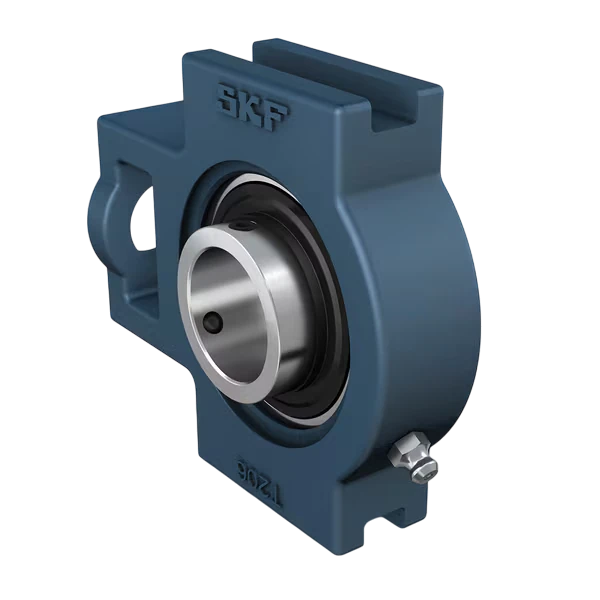

SKF UCT 204/H take-up unit; bore diameter (d) 20 mm, basic dynamic load rating C 12.7 kN, bolt hole diameter 19 mm.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
UCT 204/H SKF technical data
- Brand
- SKF
- Category
- Bearing housings and units / Take-up housings and units / Take-up units
- Part number
- UCT 204/H
- Overall length
- 94 mm
- Overall height
- 89 mm
- Set screw hole distance
- 4.5 mm
- Housing total width
- 32 mm
- Inner ring face to raceway centre
- 18.3 mm
- Bore diameter (d)
- 20 mm
- Width (B)
- 31 mm
- Basic dynamic load rating C
- 12.7 kN
- Basic static load rating C0
- 6.55 kN
- Mounting hole diameter
- 19 mm
- Fatigue load limit Pu
- 0.28 kN
- SKU
- 6866014261-Yatakli
- HS code (6-digit)
- 848320
- CN code (8-digit)
- 84832000
- GTİP (Turkish customs tariff number, 12-digit)
- 848320000000
- Country of origin
- Sweden
- Net weight
- 0.696 kg
- Volumetric weight (desi)
- 0.696
