UCT 206 F
6866015319-YatakliTake-up units
Quote and order options

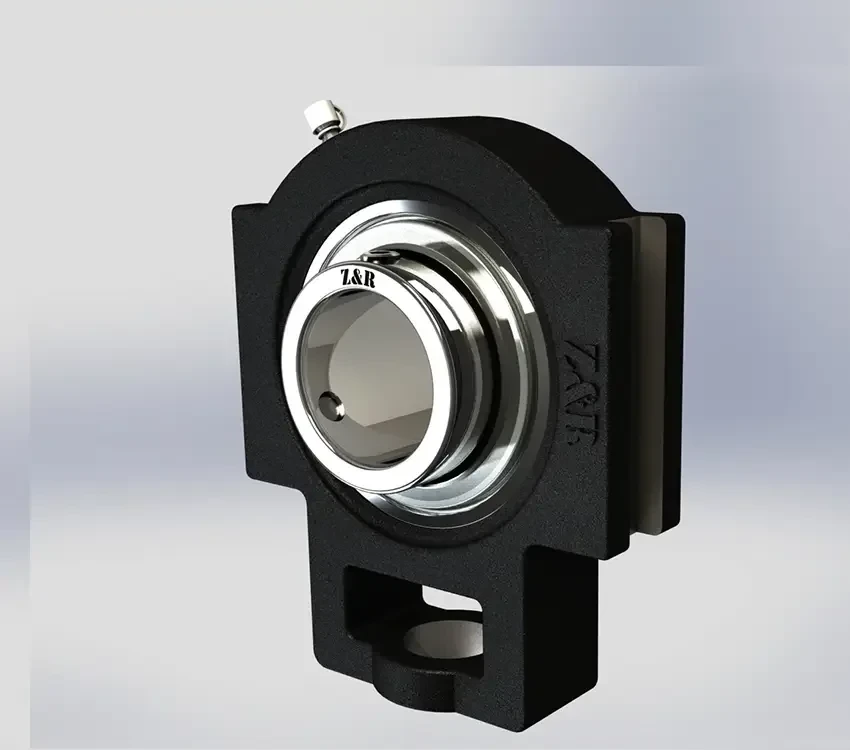

Z&R UCT 206 F mounted bearing unit. Bore diameter 30 mm. Net weight 1.22 kg.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
UCT 206 F technical data
- Brand
- Z&R
- Category
- Bearing housings and units / Take-up housings and units / Take-up units
- Part number
- UCT 206 F
- Groove distance
- 15.9 mm
- Overall length
- 102 mm
- Overall width
- 38.1 mm
- Pocket height
- 37 mm
- Pocket width
- 16 mm
- Bearing seat width
- 28 mm
- Guide groove width
- 12 mm
- Guide groove distance
- 89 mm
- Guide groove length
- 57 mm
- Axis distance
- 70 mm
- Mounting hole size
- 22 mm
- Fixed link length
- 10 mm
- Seat fixed side width
- 37 mm
- Seat fixed side height
- 56 mm
- Bore diameter (d)
- 30 mm
- Whole length
- 113 mm
- SKU
- 6866015319-Yatakli
- HS code (6-digit)
- 848320
- CN code (8-digit)
- 84832000
- GTİP (Turkish customs tariff number, 12-digit)
- 848320000000
- Country of origin
- China
- Net weight
- 1.22 kg
