UCT 206/H SKF
6866014263-YatakliTake-up units
Quote and order options

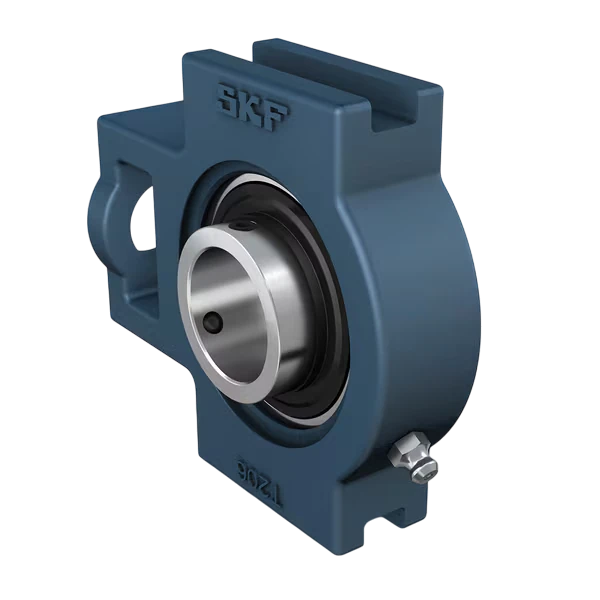

SKF UCT 206/H take-up unit; bore diameter (d) 30 mm, basic dynamic load rating C 19.5 kN, bolt hole diameter 22 mm.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
UCT 206/H SKF technical data
- Brand
- SKF
- Category
- Bearing housings and units / Take-up housings and units / Take-up units
- Part number
- UCT 206/H
- Overall length
- 113 mm
- Overall height
- 102 mm
- Set screw hole distance
- 5 mm
- Housing total width
- 37 mm
- Inner ring face to raceway centre
- 22.2 mm
- Bore diameter (d)
- 30 mm
- Width (B)
- 38.1 mm
- Basic dynamic load rating C
- 19.5 kN
- Basic static load rating C0
- 11.2 kN
- Mounting hole diameter
- 22 mm
- Fatigue load limit Pu
- 0.475 kN
- SKU
- 6866014263-Yatakli
- HS code (6-digit)
- 848320
- CN code (8-digit)
- 84832000
- GTİP (Turkish customs tariff number, 12-digit)
- 848320000000
- Country of origin
- Sweden
- Net weight
- 1.21 kg
- Volumetric weight (desi)
- 1.211
