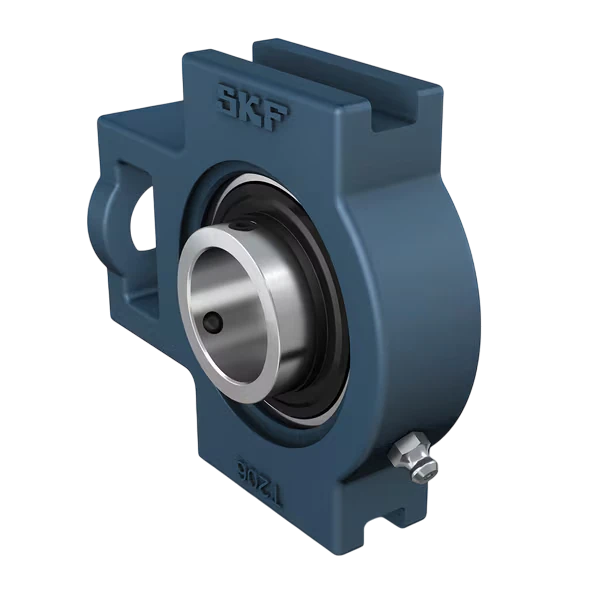

UCT 208/H SKF
6866014265-YatakliTake-up units
Quote and order options
SKF UCT 208/H take-up unit; bore diameter (d) 40 mm, basic dynamic load rating C 30.7 kN, bolt hole diameter 29 mm.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
UCT 208/H SKF technical data
- Brand
- SKF
- Category
- Bearing housings and units / Take-up housings and units / Take-up units
- Part number
- UCT 208/H
- Overall length
- 145 mm
- Overall height
- 114 mm
- Set screw hole distance
- 8 mm
- Housing total width
- 49 mm
- Inner ring face to raceway centre
- 30.2 mm
- Bore diameter (d)
- 40 mm
- Width (B)
- 49.2 mm
- Basic dynamic load rating C
- 30.7 kN
- Basic static load rating C0
- 19 kN
- Mounting hole diameter
- 29 mm
- Fatigue load limit Pu
- 0.8 kN
- SKU
- 6866014265-Yatakli
- HS code (6-digit)
- 848320
- CN code (8-digit)
- 84832000
- GTİP (Turkish customs tariff number, 12-digit)
- 848320000000
- Country of origin
- Sweden
- Net weight
- 2.3 kg
- Volumetric weight (desi)
- 2.298
