UCT 210-31 F
6866015334-YatakliTake-up units
Quote and order options

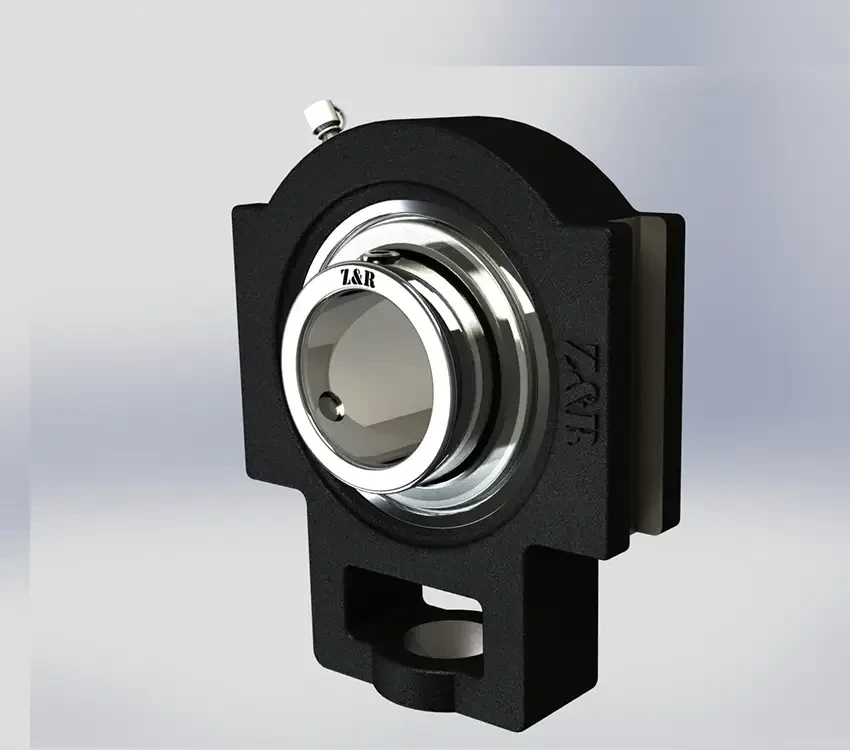

Z&R UCT 210-31 F mounted bearing unit. Bore diameter 49.2125 mm. Net weight 2.49 kg.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
UCT 210-31 F technical data
- Brand
- Z&R
- Category
- Bearing housings and units / Take-up housings and units / Take-up units
- Part number
- UCT 210-31 F
- Groove distance
- 19 mm
- Overall length
- 117 mm
- Overall width
- 51.6 mm
- Pocket height
- 49 mm
- Pocket width
- 19 mm
- Bearing seat width
- 37 mm
- Guide groove width
- 16 mm
- Guide groove distance
- 102 mm
- Guide groove length
- 86 mm
- Axis distance
- 90 mm
- Mounting hole size
- 29 mm
- Fixed link length
- 16 mm
- Seat fixed side width
- 49 mm
- Seat fixed side height
- 83 mm
- Bore diameter (d)
- 49.2125 mm
- Whole length
- 149 mm
- SKU
- 6866015334-Yatakli
- HS code (6-digit)
- 848320
- CN code (8-digit)
- 84832000
- GTİP (Turkish customs tariff number, 12-digit)
- 848320000000
- Country of origin
- China
- Net weight
- 2.49 kg
