UCT 309 F
6866015389-YatakliTake-up units
Quote and order options

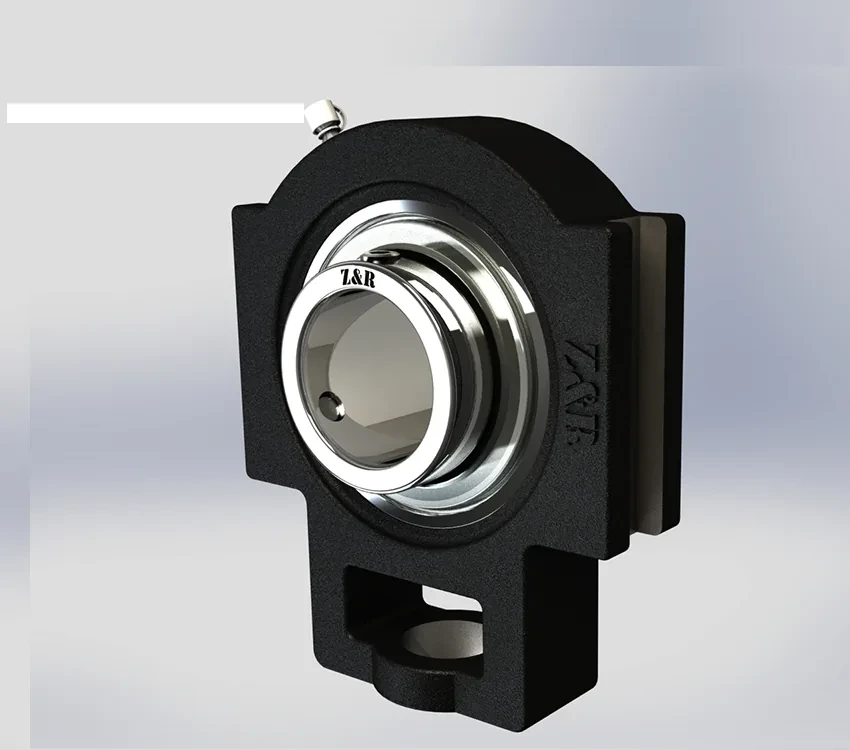

Z&R UCT 309 F mounted bearing unit. Bore diameter 45 mm. Net weight 4 kg.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
UCT 309 F technical data
- Brand
- Z&R
- Category
- Bearing housings and units / Take-up housings and units / Take-up units
- Part number
- UCT 309 F
- Groove distance
- 22 mm
- Overall length
- 138 mm
- Overall width
- 57 mm
- Pocket height
- 55 mm
- Pocket width
- 24 mm
- Bearing seat width
- 38 mm
- Guide groove width
- 18 mm
- Guide groove distance
- 125 mm
- Guide groove length
- 97 mm
- Axis distance
- 110 mm
- Mounting hole size
- 34 mm
- Fixed link length
- 20 mm
- Seat fixed side width
- 55 mm
- Seat fixed side height
- 90 mm
- Bore diameter (d)
- 45 mm
- Whole length
- 178 mm
- SKU
- 6866015389-Yatakli
- HS code (6-digit)
- 848320
- CN code (8-digit)
- 84832000
- GTİP (Turkish customs tariff number, 12-digit)
- 848320000000
- Country of origin
- China
- Net weight
- 4 kg
