UCT 312-37 F
6866015400-YatakliTake-up units
Quote and order options

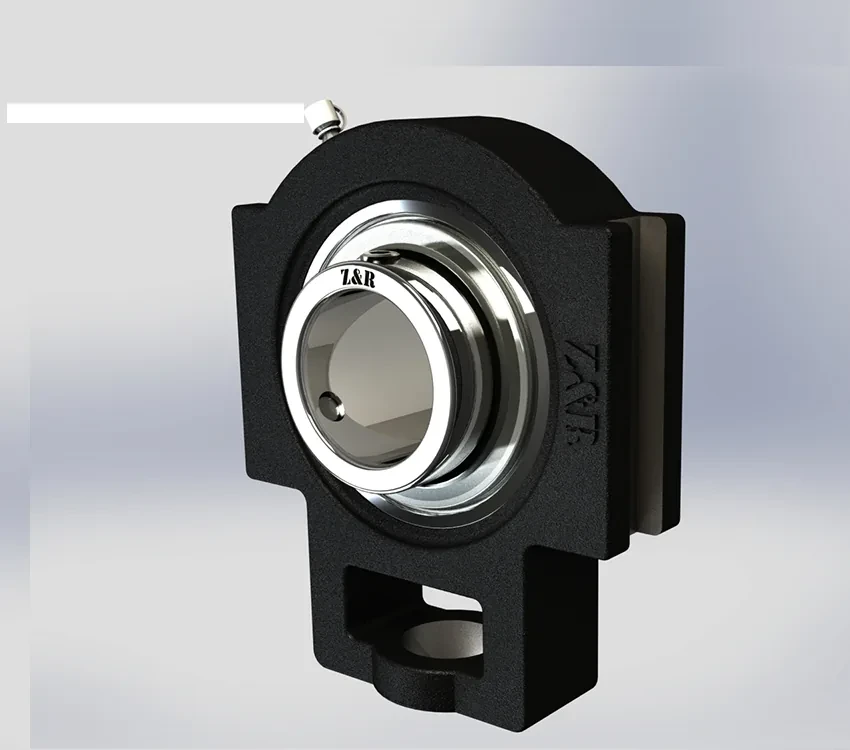

Z&R UCT 312-37 F mounted bearing unit. Bore diameter 58.7375 mm. Net weight 7.5 kg.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
UCT 312-37 F technical data
- Brand
- Z&R
- Category
- Bearing housings and units / Take-up housings and units / Take-up units
- Part number
- UCT 312-37 F
- Groove distance
- 26 mm
- Overall length
- 178 mm
- Overall width
- 71 mm
- Pocket height
- 71 mm
- Pocket width
- 31 mm
- Bearing seat width
- 46 mm
- Guide groove width
- 22 mm
- Guide groove distance
- 160 mm
- Guide groove length
- 123 mm
- Axis distance
- 135 mm
- Mounting hole size
- 41 mm
- Fixed link length
- 25 mm
- Seat fixed side width
- 71 mm
- Seat fixed side height
- 113 mm
- Bore diameter (d)
- 58.7375 mm
- Whole length
- 220 mm
- SKU
- 6866015400-Yatakli
- HS code (6-digit)
- 848320
- CN code (8-digit)
- 84832000
- GTİP (Turkish customs tariff number, 12-digit)
- 848320000000
- Country of origin
- China
- Net weight
- 7.5 kg
