UCT 317 F
6866015423-YatakliTake-up units
Quote and order options

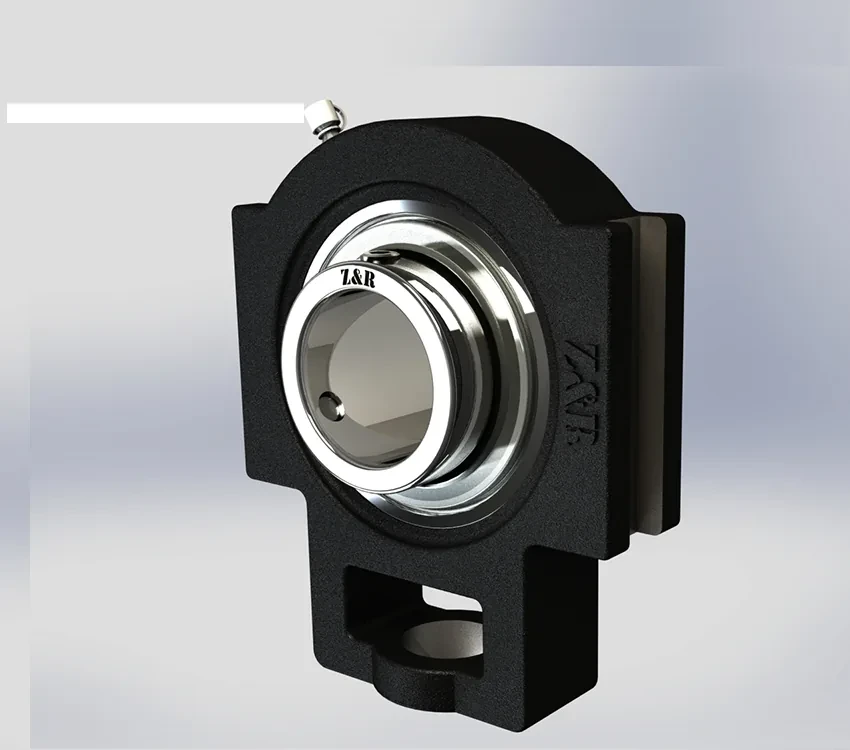

Z&R UCT 317 F mounted bearing unit. Bore diameter 85 mm. Net weight 18.6 kg.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
UCT 317 F technical data
- Brand
- Z&R
- Category
- Bearing housings and units / Take-up housings and units / Take-up units
- Part number
- UCT 317 F
- Groove distance
- 40 mm
- Overall length
- 240 mm
- Overall width
- 96 mm
- Pocket height
- 98 mm
- Pocket width
- 42 mm
- Bearing seat width
- 64 mm
- Guide groove width
- 32 mm
- Guide groove distance
- 214 mm
- Guide groove length
- 170 mm
- Axis distance
- 183 mm
- Mounting hole size
- 53 mm
- Fixed link length
- 32 mm
- Seat fixed side width
- 102 mm
- Seat fixed side height
- 152 mm
- Bore diameter (d)
- 85 mm
- Whole length
- 298 mm
- SKU
- 6866015423-Yatakli
- HS code (6-digit)
- 848320
- CN code (8-digit)
- 84832000
- GTİP (Turkish customs tariff number, 12-digit)
- 848320000000
- Country of origin
- China
- Net weight
- 18.6 kg
