UCX213/V3/C12/G2--F
6866015204-RulmanUCX series mounted bearing units
Quote and order options

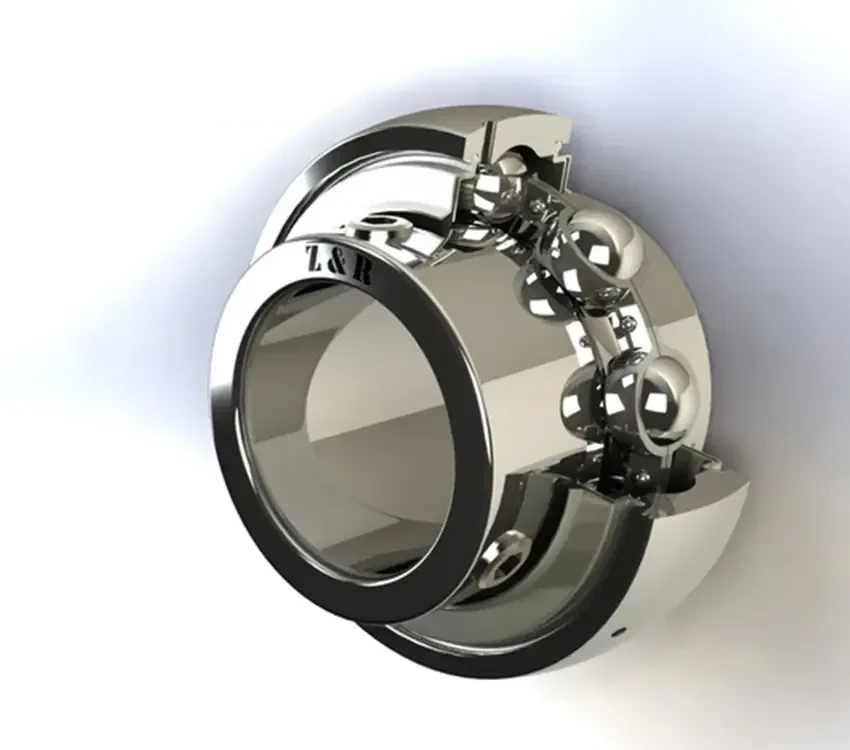

UCX213/V3/C12/G2--F, Z&R ball bearing. Bore diameter 65 mm, outside diameter 120 mm, width 65.1 mm. Basic load ratings: dynamic 62.3 kN, static 45 kN. Weight 2.6 kg.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
UCX213/V3/C12/G2--F technical data
- Brand
- Z&R
- Category
- Bearing housings and units / Mounted bearing units / UCX series mounted bearing units
- Part number
- UCX213/V3/C12/G2--F
- Bore diameter (d)
- 65 mm
- Outside diameter (D)
- 120 mm
- Width (B)
- 65.1 mm
- Basic dynamic load rating C
- 62.3 kN
- Basic static load rating C0
- 45 kN
- Outer ring width
- 28 mm
- Groove distance
- 25.4 mm
- Lubrication hole distance
- 8.7 mm
- Set screw hole distance
- 11 mm
- Center diameter
- 92.5 mm
- Lubrication hole diameter
- 2 mm
- SKU
- 6866015204-Rulman
- HS code (6-digit)
- 848210
- CN code (8-digit)
- 84821090
- GTİP (Turkish customs tariff number, 12-digit)
- 848210900013
- Country of origin
- China
- Net weight
- 2.6 kg
