UKF 209 K/H SKF
6866014283-YatakliFlanged ball bearing units
Quote and order options

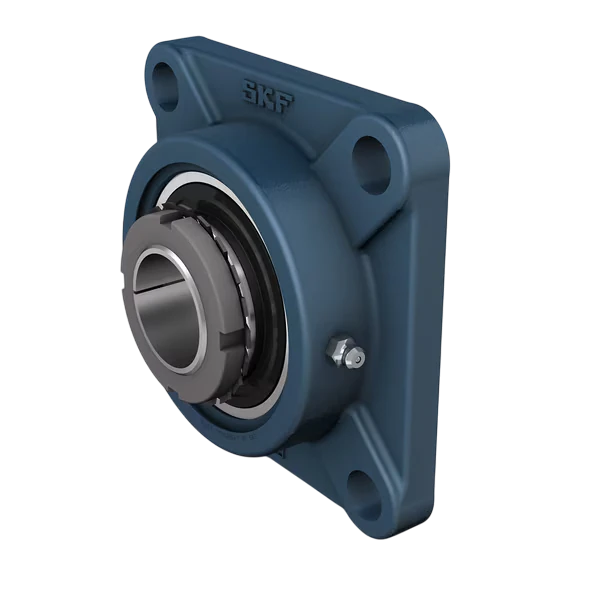

SKF UKF 209 K/H flanged ball bearing unit: bore diameter (d) 40 mm, bolt hole spacing 105 mm, basic dynamic load rating C 33.2 kN, and bolt hole diameter 16 mm.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
UKF 209 K/H SKF technical data
- Brand
- SKF
- Category
- Bearing housings and units / Flanged bearing housings and units / Flanged ball bearing units
- Part number
- UKF 209 K/H
- Overall length
- 137 mm
- Overall width
- 50.75 mm
- Mounting hole spacing
- 105 mm
- Housing total width
- 38 mm
- Adapter sleeve width
- 50 mm
- Lock nut outer diameter
- 65 mm
- Inner ring face to raceway centre
- 28.75 mm
- Bore diameter (d)
- 40 mm
- Width (B)
- 35 mm
- Basic dynamic load rating C
- 33.2 kN
- Basic static load rating C0
- 21.6 kN
- Mounting hole diameter
- 16 mm
- Fatigue load limit Pu
- 0.915 kN
- Flange width
- 16 mm
- SKU
- 6866014283-Yatakli
- HS code (6-digit)
- 848320
- CN code (8-digit)
- 84832000
- GTİP (Turkish customs tariff number, 12-digit)
- 848320000000
- Country of origin
- Sweden
- Net weight
- 1.93 kg
- Volumetric weight (desi)
- 1.9312
