UKFL 208 K/H SKF
6866014302-YatakliFlanged ball bearing units
Quote and order options

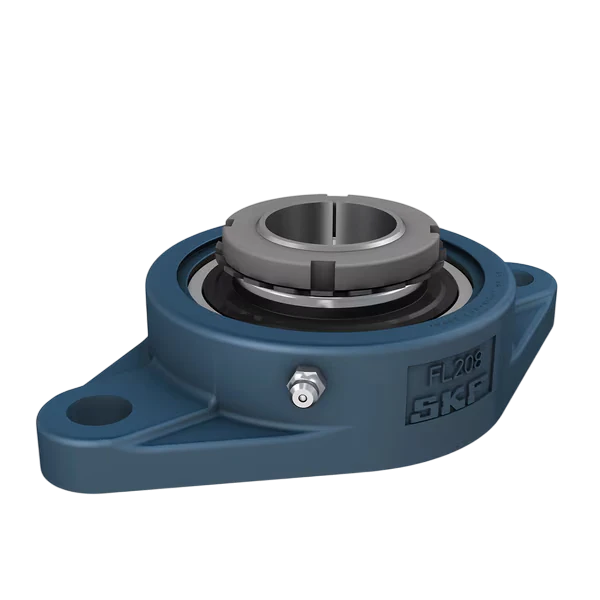

SKF UKFL 208 K/H flanged ball bearing unit: bore diameter (d) 35 mm, bolt hole spacing 144 mm, basic dynamic load rating C 30.7 kN, and bolt hole diameter 16 mm.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
UKFL 208 K/H SKF technical data
- Brand
- SKF
- Category
- Bearing housings and units / Flanged bearing housings and units / Flanged ball bearing units
- Part number
- UKFL 208 K/H
- Overall length
- 100 mm
- Overall height
- 174.5 mm
- Overall width
- 46.25 mm
- Mounting hole spacing
- 144 mm
- Housing total width
- 34 mm
- Adapter sleeve width
- 46 mm
- Lock nut outer diameter
- 58 mm
- Inner ring face to raceway centre
- 27.15 mm
- Bore diameter (d)
- 35 mm
- Width (B)
- 33.9 mm
- Basic dynamic load rating C
- 30.7 kN
- Basic static load rating C0
- 19 kN
- Mounting hole diameter
- 16 mm
- Fatigue load limit Pu
- 0.8 kN
- Flange width
- 14 mm
- SKU
- 6866014302-Yatakli
- HS code (6-digit)
- 848320
- CN code (8-digit)
- 84832000
- GTİP (Turkish customs tariff number, 12-digit)
- 848320000000
- Country of origin
- Sweden
- Net weight
- 1.43 kg
- Volumetric weight (desi)
- 1.4312
