UKFL 210 K/H SKF
6866014304-YatakliFlanged ball bearing units
Quote and order options

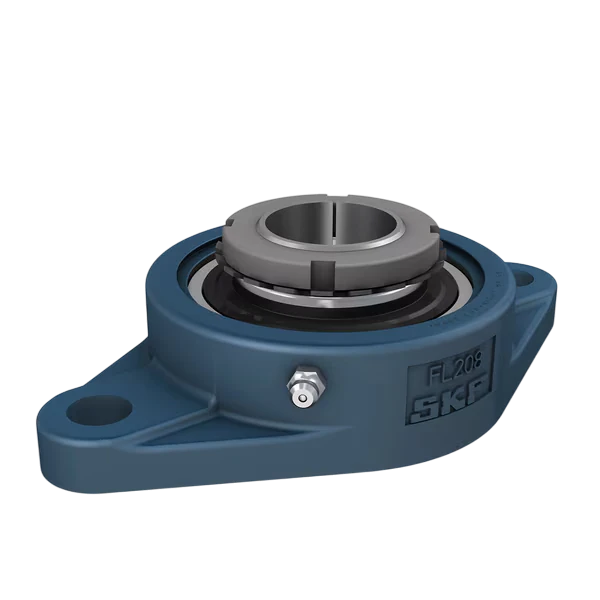

SKF UKFL 210 K/H flanged ball bearing unit: bore diameter (d) 45 mm, bolt hole spacing 157 mm, basic dynamic load rating C 35.1 kN, and bolt hole diameter 19 mm.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
UKFL 210 K/H SKF technical data
- Brand
- SKF
- Category
- Bearing housings and units / Flanged bearing housings and units / Flanged ball bearing units
- Part number
- UKFL 210 K/H
- Overall length
- 115 mm
- Overall height
- 197 mm
- Overall width
- 52.75 mm
- Mounting hole spacing
- 157 mm
- Housing total width
- 39 mm
- Adapter sleeve width
- 55 mm
- Lock nut outer diameter
- 70 mm
- Inner ring face to raceway centre
- 30.75 mm
- Bore diameter (d)
- 45 mm
- Width (B)
- 37 mm
- Basic dynamic load rating C
- 35.1 kN
- Basic static load rating C0
- 23.2 kN
- Mounting hole diameter
- 19 mm
- Fatigue load limit Pu
- 0.98 kN
- Flange width
- 15 mm
- SKU
- 6866014304-Yatakli
- HS code (6-digit)
- 848320
- CN code (8-digit)
- 84832000
- GTİP (Turkish customs tariff number, 12-digit)
- 848320000000
- Country of origin
- Sweden
- Net weight
- 1.94 kg
- Volumetric weight (desi)
- 1.942
