UKX 209/V2/--F
6866015177-RulmanUKX series mounted bearing units
Quote and order options

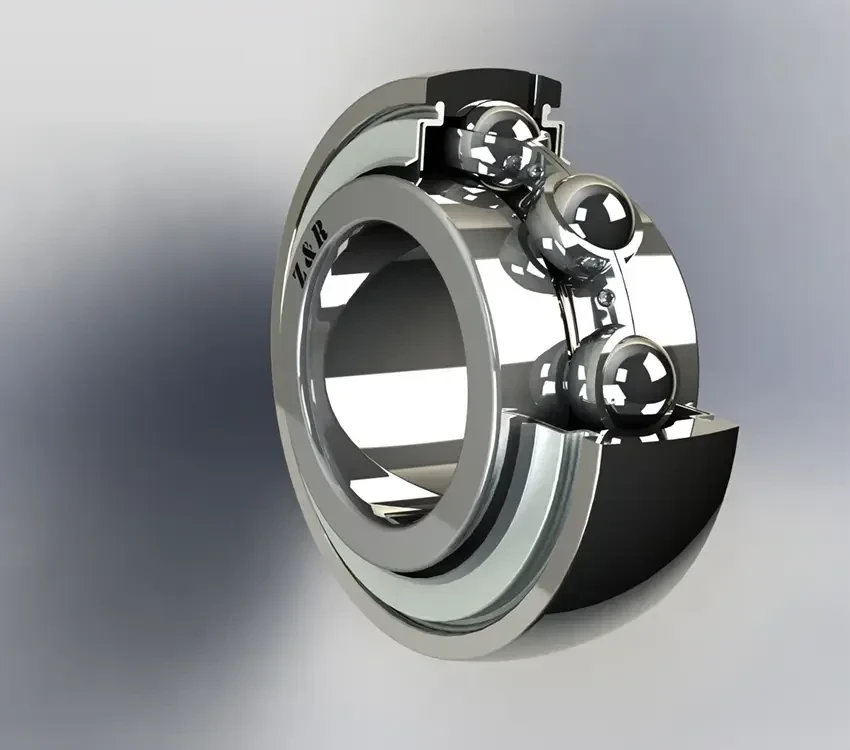

UKX 209/V2/--F, Z&R ball bearing. Bore diameter 40 mm, outside diameter 85 mm, width 30 mm. Basic load ratings: dynamic 32.8 kN, static 20.7 kN. Weight 0.75 kg.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
UKX 209/V2/--F technical data
- Brand
- Z&R
- Category
- Bearing housings and units / Mounted bearing units / UKX series mounted bearing units
- Part number
- UKX 209/V2/--F
- Bore diameter (d)
- 40 mm
- Outside diameter (D)
- 85 mm
- Width (B)
- 30 mm
- Basic dynamic load rating C
- 32.8 kN
- Basic static load rating C0
- 20.7 kN
- Outer ring width
- 22 mm
- Groove distance
- 15 mm
- Lubrication hole distance
- 6.5 mm
- Center diameter
- 66 mm
- Lubrication hole diameter
- 1.9 mm
- SKU
- 6866015177-Rulman
- HS code (6-digit)
- 848210
- CN code (8-digit)
- 84821090
- GTİP (Turkish customs tariff number, 12-digit)
- 848210900012
- Country of origin
- China
- Net weight
- 0.75 kg
