HE 3024 E BGL
6866016966-MansonAdapter sleeves
Quote and order options

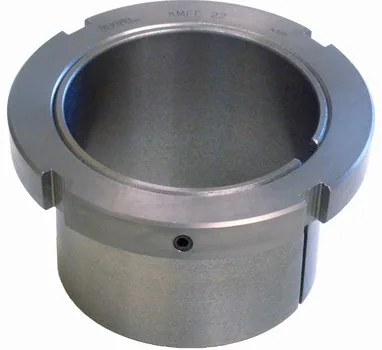

BGL HE 3024 E adapter sleeve: shaft diameter 107.95 mm, bearing bore diameter 120 mm, thread M 120x2, overall length 72 mm, taper 1:12. Net weight 2.7 kg.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
HE 3024 E BGL technical data
- Brand
- BGL
- Category
- Accessories / Sleeves / Adapter sleeves
- Part number
- HE 3024 E
- Lock nut outer diameter
- 155 mm
- Overall length
- 72 mm
- SKU
- 6866016966-Manson
- HS code (6-digit)
- 848299
- CN code (8-digit)
- 84829900
- GTİP (Turkish customs tariff number, 12-digit)
- 848299000019
- Country of origin
- Brazil
- Net weight
- 2.7 kg
- Volumetric weight (desi)
- 0.9392
Weight
- Catalog net weight
- 2.7 kg
Dimensions
- Compatible bearing bore
- 120 mm
- Shaft diameter
- 107.95 mm
Properties
- Nominal thread
- M 120x2 mm
- Nut locking screw
- M 10 mm
- Taper ratio
- 1:12
