HE 314 E BGL
6866016926-MansonAdapter sleeves
Quote and order options

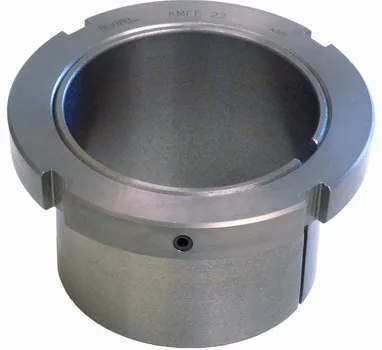

BGL HE 314 E adapter sleeve: shaft diameter 57.15 mm, bearing bore diameter 70 mm, thread M 70x2, overall length 52 mm, taper 1:12. Net weight 0.765 kg.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
HE 314 E BGL technical data
- Brand
- BGL
- Category
- Accessories / Sleeves / Adapter sleeves
- Part number
- HE 314 E

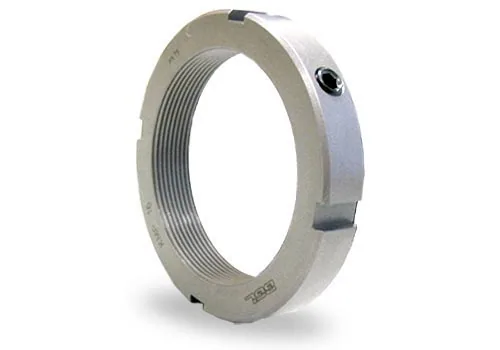

- Lock nut outer diameter
- 92 mm
- Overall length
- 52 mm
- SKU
- 6866016926-Manson
- HS code (6-digit)
- 848299
- CN code (8-digit)
- 84829900
- GTİP (Turkish customs tariff number, 12-digit)
- 848299000019
- Country of origin
- Brazil
- Net weight
- 0.77 kg
- Volumetric weight (desi)
- 0.3011
Weight
- Catalog net weight
- 0.765 kg
Dimensions
- Compatible bearing bore
- 70 mm
- Shaft diameter
- 57.15 mm
Properties
- Nominal thread
- M 70x2 mm
- Nut locking screw
- M 6 mm
- Taper ratio
- 1:12
