KM 34 E BGL
6866019235-SomunLock nuts
Quote and order options

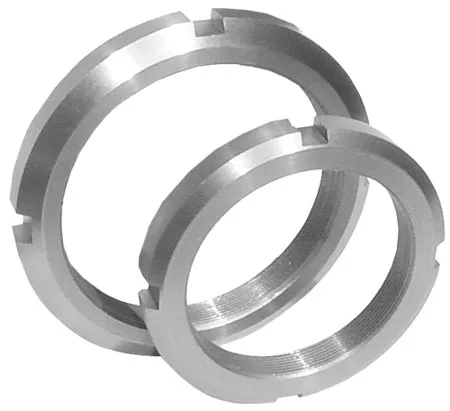

BGL KM 34 E lock nut: thread M 170x3, nut outside diameter 220 mm, width 26 mm, slot depth 7 mm. Net weight 2.544 kg.
Set the quantity and add it to your quote list, or ask our team for technical support. When you sign in with your approved business account, your own prices and stock information are also shown.
Verifying price and stock…
KM 34 E BGL technical data
- Brand
- BGL
- Category
- Accessories / Locking devices / Lock nuts
- Part number
- KM 34 E
- Lock nut outer diameter
- 220 mm
- Lock nut width
- 26 mm
- Slot depth
- 7 mm
- SKU
- 6866019235-Somun
- HS code (6-digit)
- 731816
- CN code (8-digit)
- 73181660
- GTİP (Turkish customs tariff number, 12-digit)
- 731816600000
- Country of origin
- Brazil
- Net weight
- 2.54 kg
- Volumetric weight (desi)
- 0.8832
Compatibility
- Adapter sleeves assembled using this product
- H 3134; HA 3134; HE 3134; HS 3134; H 2334; HA 2334; HE 2334; HS 2334; H 24134
- Hydraulic adapter sleeves assembled using this product
- OH 3134H; OHA 3134H; OHE 3134H; OHS 3134H; OH 2334H; OHA 2334H; OHE 2334H; OHS 2334H; OH 24134H
- Hydraulic withdrawal sleeves assembled using this product
- AOH 236; AOH 2236; AOH 2236 G; AOH 2336; AOH 2336 G; AOH 3036; AOH 3136; AOH 3136 G; AOH 3236; AOH 3236 G; AOH 3936; AOH 24036; AOH 24136
- Withdrawal sleeves assembled using this product
- AH 236; AH 2236; AH 2236 G; AH 2336; AH 2336 G; AH 3036; AH 3136; AH 3136 G; AH 3236; AH 3236 G; AH 3936; AH 24036; AH 24136
- Compatible lock washers
- MB 34
- Withdrawal sleeves removed using this product
- AH 232; AH 332 G; AH 2332 G; AH 3032; AH 3132 G; AH 3232 G; AH 24032; AH 24132; AOH 332 G; AOH 2332 G; AOH 3032; AOH 3132 G; AOH 3232 G; AOH 24032; AOH 24132
Weight
- Catalog net weight
- 2.544 kg
Dimensions
- Chamfer diameter
- 193 mm
- Lock nut slot width
- 16 mm
Properties
- Nominal thread
- M 170x3
